UR FFHM Neustrashimyy
"The One That Is Not Afraid"

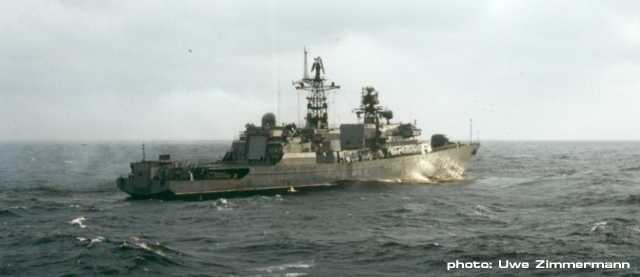

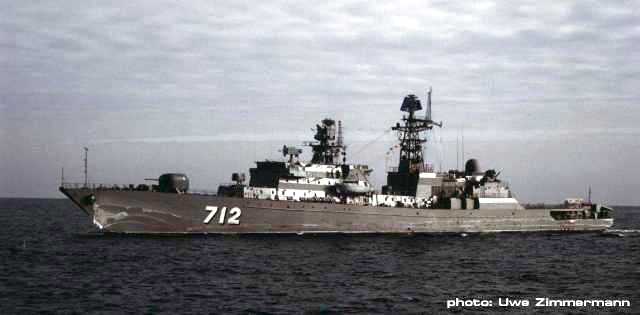

Neustrashimyy on exercise cruising in the Baltic Sea
Neustrashimyy on a cold winter day

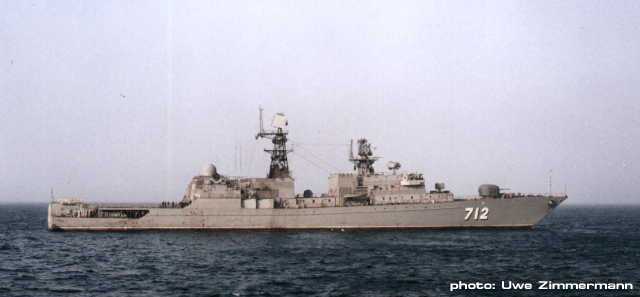

Neustrashimyy in the afternoon sun

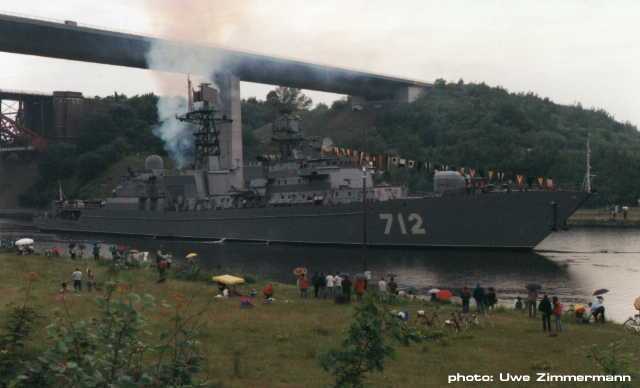

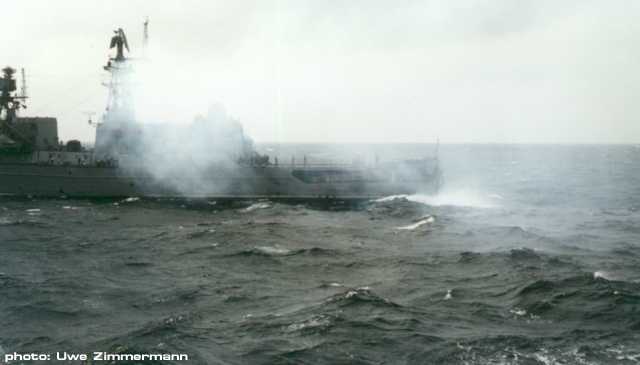

Neustrashimyy powering up the engines with cheap fuel

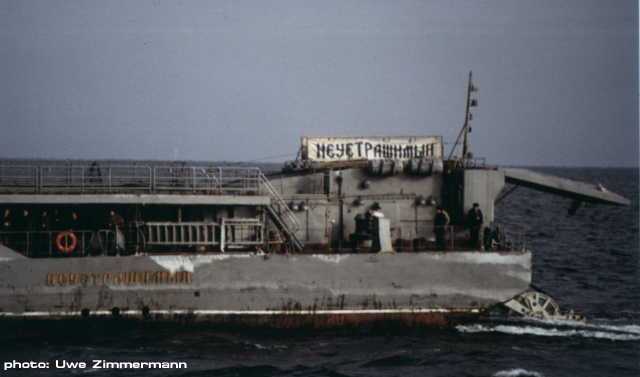

Neustrashimyy using its dipping sonar

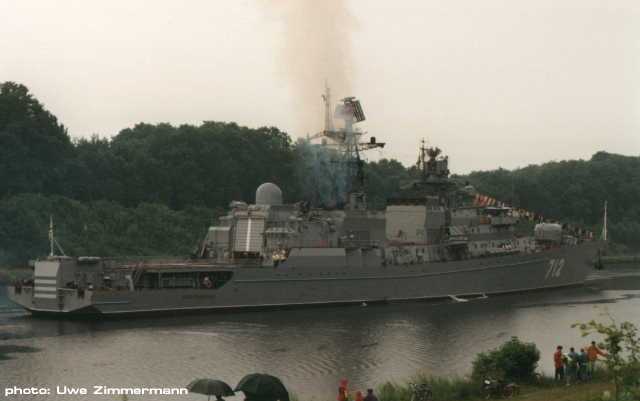

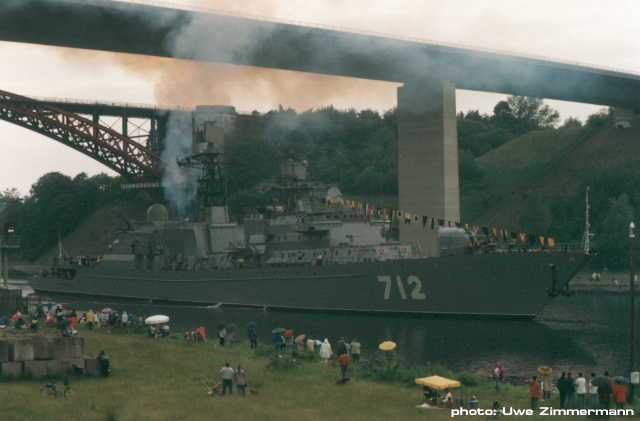

Neustrashimyy during a parade to the 100th anniversary of the Kiel Canal (june 1995) - still using cheap fuel.

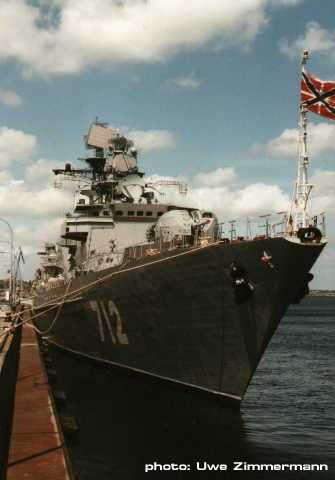

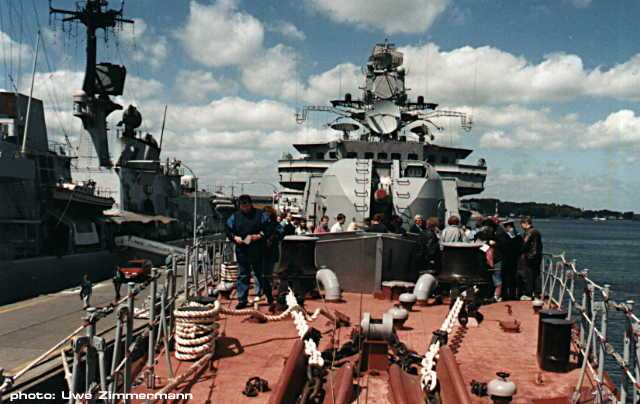

Neustrashimyy view from the bow

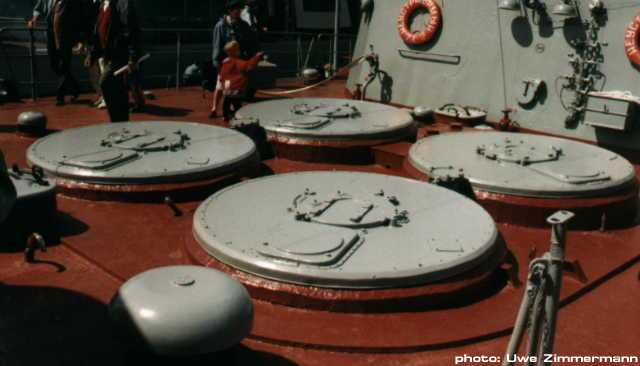

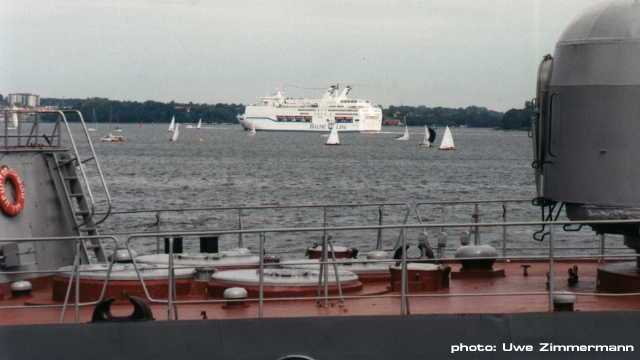

Neustrashimyy 4x SA-N-9 Gauntlet VLS

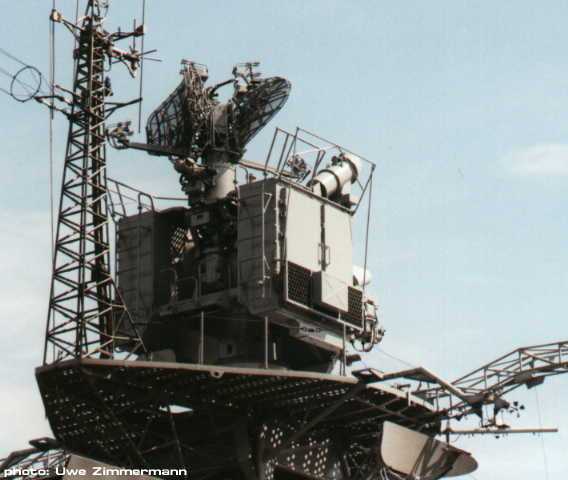

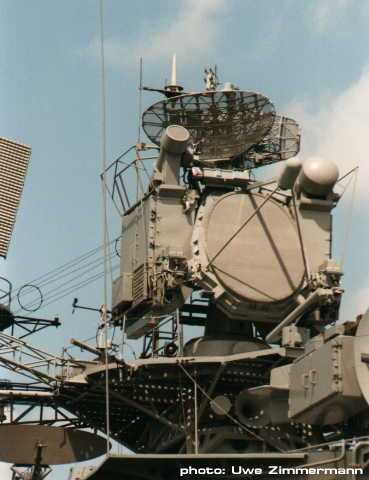

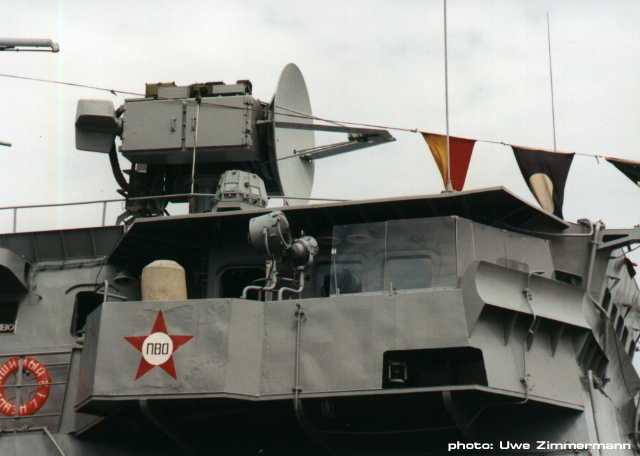

Neustrashimyy SAM control radar Cross Sword (SA-N-9).

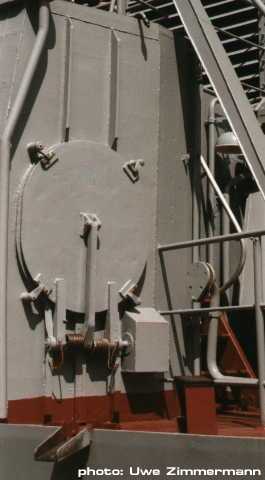

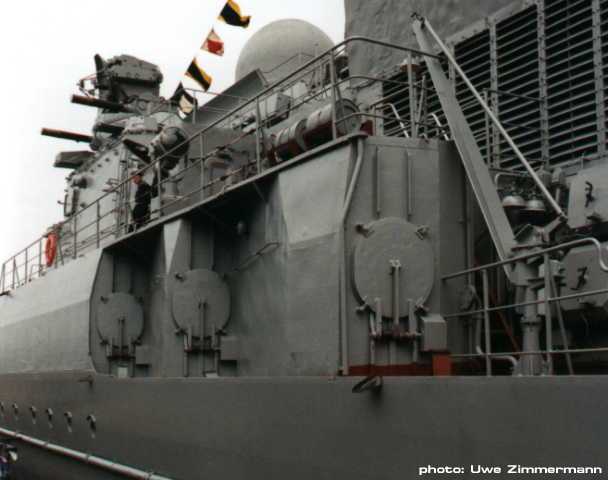

Neustrashimyy starbord side torpedo tubes (3x 533mm)

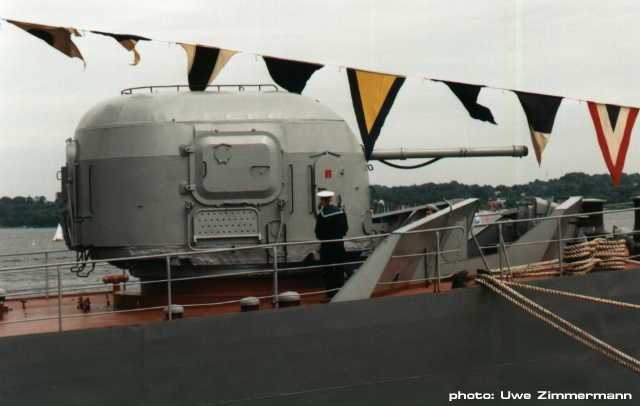

Neustrashimyy 100mm gun

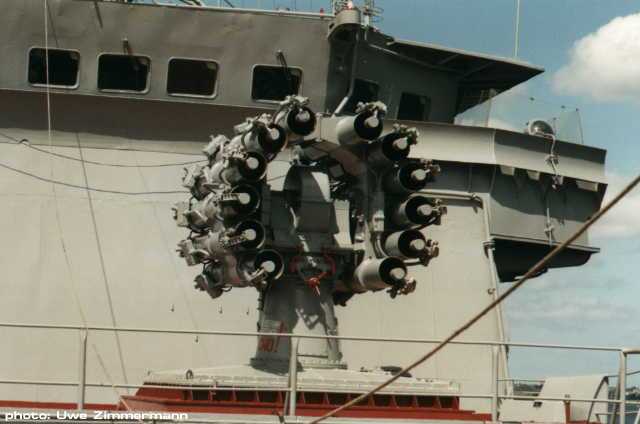

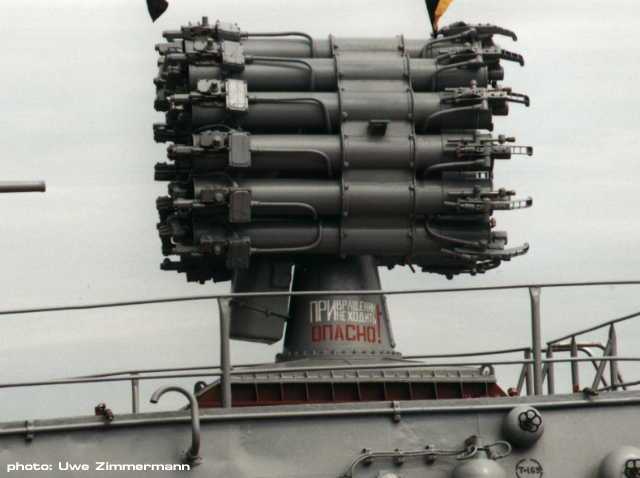

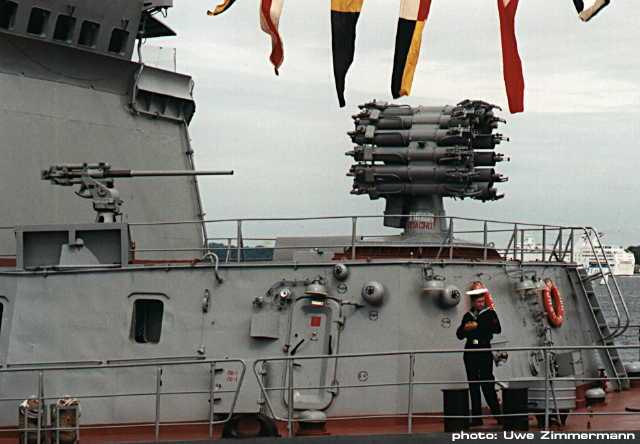

Neustrashimyy RBU-6000 ASW launcher

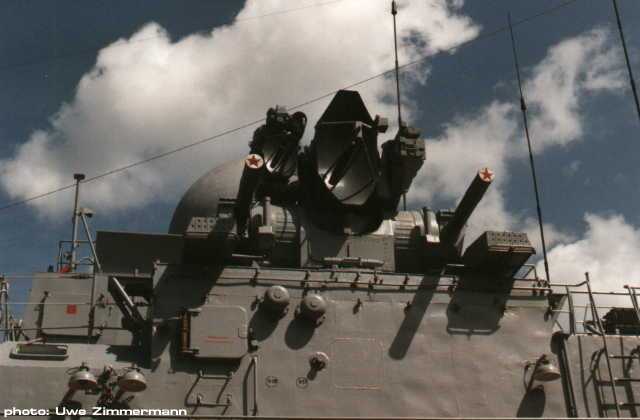

Neustrashimyy starboard CADS-N-1 CIWS system

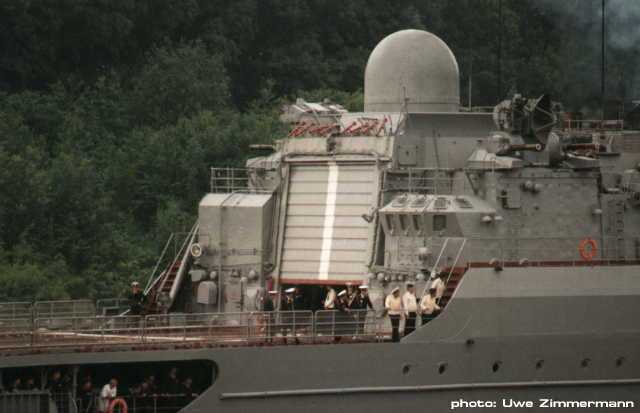

Neustrashimyy with half-opened hangar. Radom Cross Dome on top of the hangar.
Neustrashimyy the bridge and the tracking radar Kite Screech.

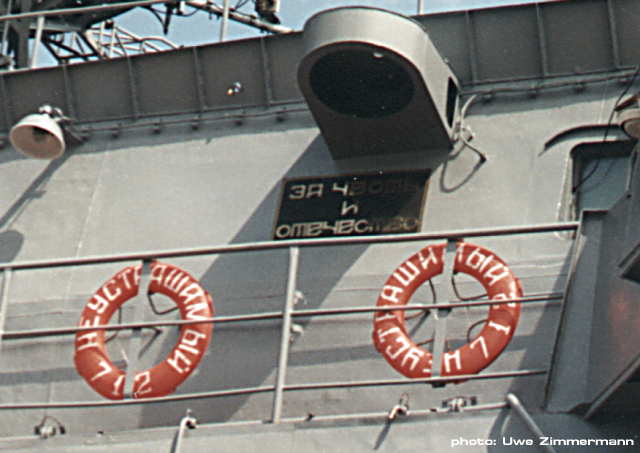

Neustrashimyy the plate reads: FOR HONOR AND FATHERLAND
'Neustrashimyy' ('Yastreb') class multirole frigates
(Project 1154.0)
| Displacement: | 4,250 tons full load |
| Dimensions: | 129.63 x 15.6 x 8.09 meters |
| Propulsion: | COGAG: 2 M70 cruise gas turbines, 20,000 shp 2 M90 boost gas turbines, 37,000 shp 2 shafts, 57,000 shp 30+ knots |
| Crew: | 210 |
| Radar: | MR-760 Fregat-MA/Top Plate 3-D air search |
| Sonar: | Zvezda-1 suite with MGK-345 Bronza Ox Yoke hull mounted LF Ox Tail LF VDS |
| Fire Control: | MR-352 Pozitiv/Cross Dome SSM targeting MR-360 Podkat/Cross Sword SAM control |
| EW: | Vympel-R2 suite with Foot Ball intercept Half Hat-B intercept Cage Flask intercept Bell Squat jammer 2 PK-16 decoy RL 8 PK-10 decoy RK |
| Aviation: | aft helicopter deck and hangar for 1 Ka-26/26/27 series helicopter |
| Armament: | provision for 8 Kh-35/SS-N-25 Uran/Switchblade SSM 4 Kinzhal VLS systems (329M-330/SA-N-9 Gauntlet SAM) 1 100mm/70cal DP 2 CADS-N-1/Kortik CIWS systems (649M-311/SA-N-11 Grison SAM; 1 dual 30 mm CIWS per mount (4 CIWS guns total)) 6 21 inch torpedo tubes (12 torpedoes and/or RPK-6/SS-N-16 Vodopod/Stallion ASROC) 1 12-tube RBU-6000 ASW rocket launcher |
| Concept: | A new, modern, relatively heavily armed multirole frigate design. Primarily intended as an ASW ship, but provision for modern SSMs allows ASuW role; the SSMs, however, were not fitted at completion, probably due to funding problems. Design incorporates some stealth features. Completed 1989 but not commissioned until 1993. Originally meant as a successor to the much smaller (1000 ton) 'Grisha' class, but the design grew and they have essentially become successors to the 'Krivak' line. Only one unit completed; two others started but scrapped incomplete. |
| Classification: | Probably Storozkevoy Korabl' (SKR); Patrol Ship. |
| Builders: | Yantar Zavod 820, Kaliningrad, Russia. |
Name Year FLT Homeport Notes
Neustrashimyy 1993 BALT
Nepristupnyy scrapped
300 Let Rossiskomy Flot scrapped
(sources: Hazegray and Underway ex:World Fleet Lists and
The state of the russian navy)
